Boolean 3D Library

Boolean is one of basic and well known operation on 3D models. This method was introduced in the beginning of 3D era - we can remember TRON (1982), where motorcycles were made from graphic primitives with help of boolean operations. Despite of such age, booleans still challenging and even high end packages can't guarantee perfect results even with standard geometry primitives, like cubes and spheres. Thin and long holes are quite common defects.

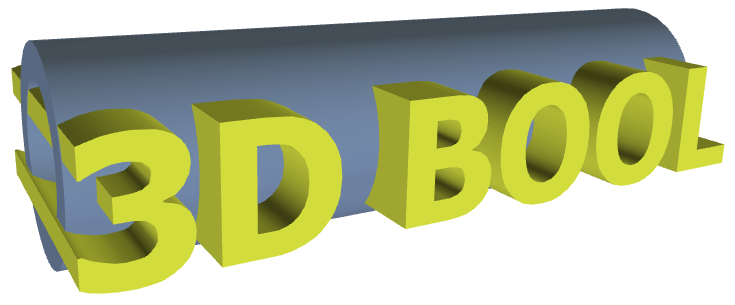

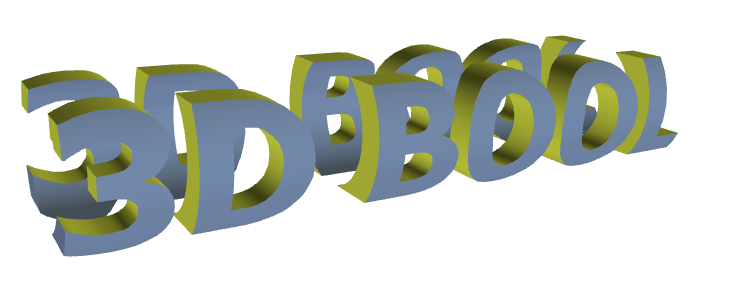

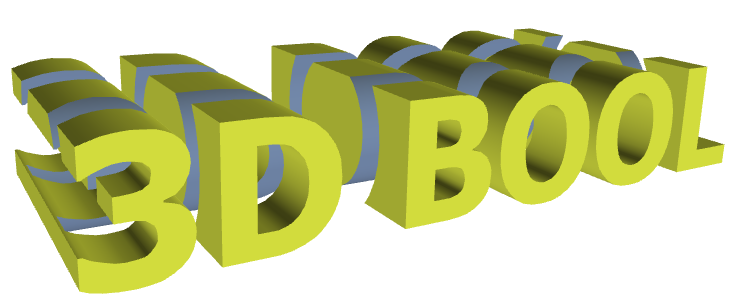

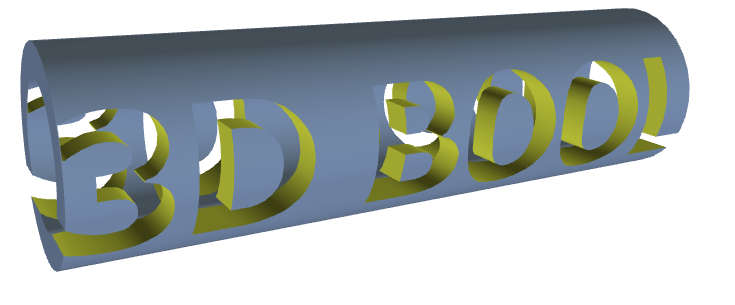

Source Objects - tube and 3d text A SUB B - subtract 3d text from tube B SUB A - subtract tube from 3d text A AND B - tube AND 3d text

We offer fast, reliable, high quality and feature rich 3D Boolean Library. See WebGL Demo.

Features

Background

How it may work

Concept of boolean algorithm looks easy. For instance A SUB B.

There are many problems on the way:



Highlights

We are very proud of our results. When everything works good, it looks natural but we still know about solved problems.

Intersections

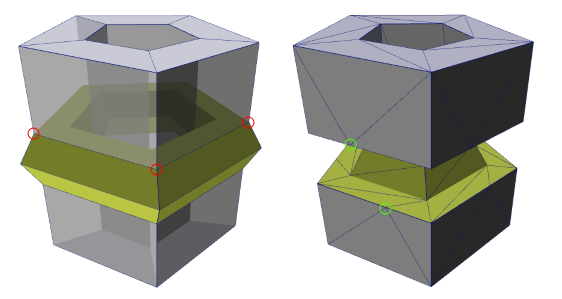

3D Boolean Challenge 1

Simple test scene with tube and torus. Just five segments tube and torus. Torus pipe has 6 segments. Scene is simple but just right for demonstration. In this particular case polygons of torus are fully inside or outside of tube. We should cut only polygons of tube. Problem here that there is no direct intersection of polygons - points of torus (marked with red) are eaxctly on edges. Of course floating point calculations may show intersection, but not always. BTW, how to use tolerance here?

Points marked with green shows another advantage. Let's explain. Side of tube was made from quad (or two triangles) diagonal goes from top-left to bottom-right and intersects torus at green points. As you may see on the right image - former surface of torus also has this point and additional triangle is added. This means no holes in the output.

Normals

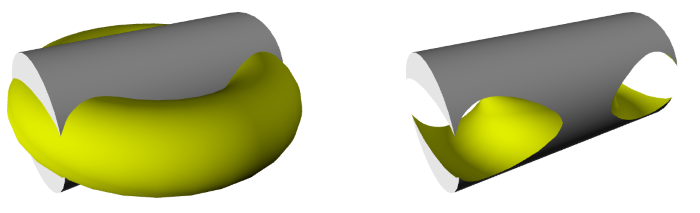

One image below two objects (torus and cylinder) are combined. Surfaces are intersecting on obtuse angles and everything looks perfect.

3D Boolean Normals

In order to achieve such look, special treatment was applied.

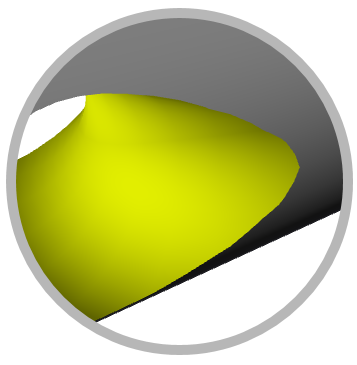

Default, high quality normals processing.
Click on image for bigger version.

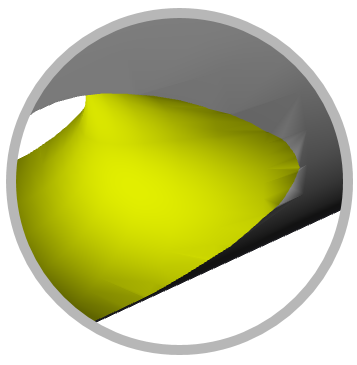

Normal tretment switched off.
Click on image for bigger version.

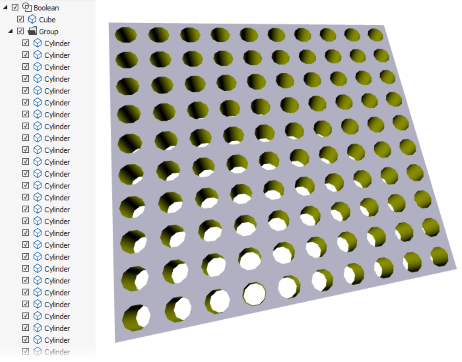

Group of Objects

Just an ability to handle many objects as single operand.

Group Of Objects

From another point of view, this is tought case - many small objects penetrate one face. We have special code which detects such situation process it in a best possible way.

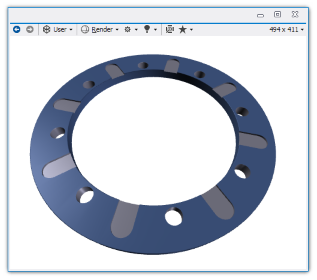

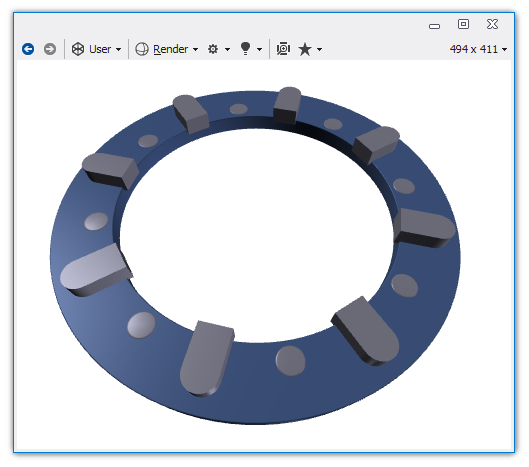

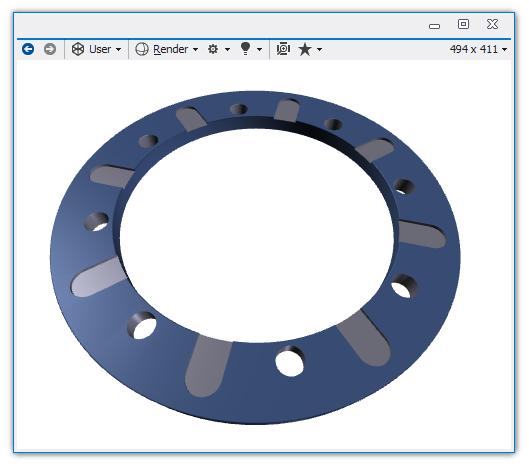

Samples

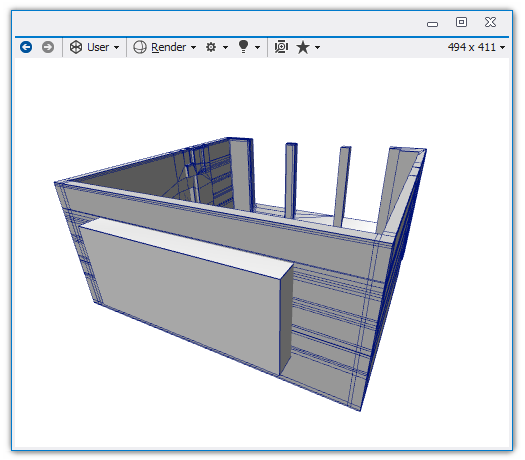

Before

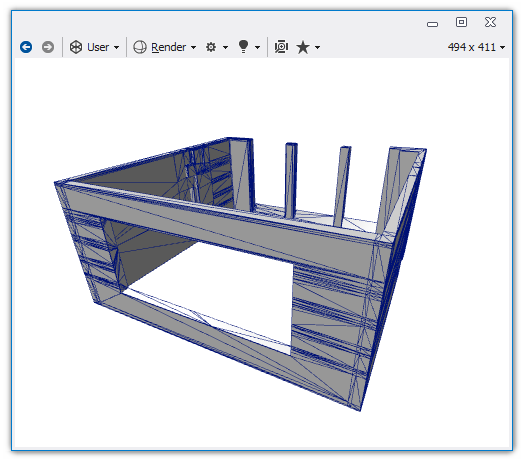

After




API and Technical Information

Library is available in two forms.

  1. First is just a boolean, it can process only triangles and can output triangles.
  2. Second can process polygons, even with holes and optimize output. Optimizations may include: remove holes, remove extra points, generate polygons from triangles.

#1



#2



Which one is better? Well, first one is smaller and contains only boolean itself, while second has many useful extras. If you want to process objects only once, then first version is enough. But if you want to construct objects with help of hundreds of consecutive boolean operations, then second one is the right choice. Just because, each boolean opertaion may generate big amount of small triangles. In result model becomes heavier and harder to process. That's why you may want to optimize model a bit after each boolean operation.

See preliminary documentation.

Sample Usage

		ivbool3d::Processor*proc=CreateBoolean();// create boolean object
		ivbool3d::Object*obj0=proc->AddSource(0);// add empty object for A channel
		ivbool3d::Object*obj1=proc->AddSource(1);// add empty object for B channel

		// provide source points and triangles
		// set data of first object
		// set data of second object
		if(proc->Process(ivbool3d::M_SUB_AB,ivbool3d::EXTRA_INFO))
		{
			ivbool3d::Result rezult;
			if(proc->GetResult(&rezult))
			{
			// rezult contains list of points and triangles in flat array
			}
		}
		proc->Destroy();

That's it :)

Licensing



Test version is available on request.
